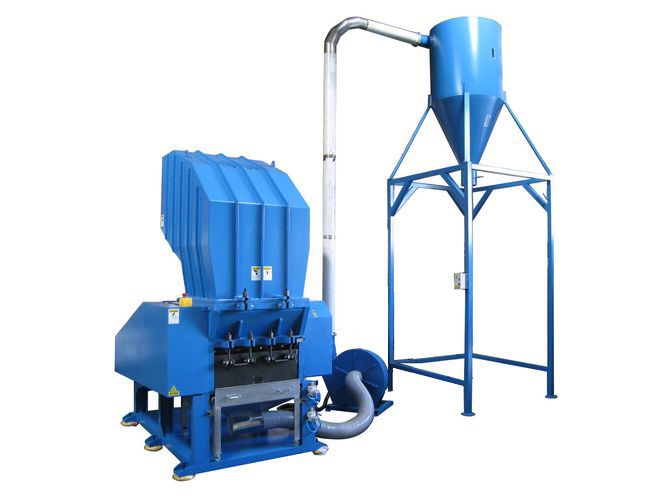

Granulator

Product ID: GP-1000RH, GP-1000BRH Inquiry

The Powerful Plastic Shredding Machine is major for crushing the various runners, sprues and defected products from plastic injection molding machine.

The granulator is suitable for rubber, plastic injection molding, wood, food and environment recycling industry. It is major for granulating various objects, such as rubber, plastic injection molding, extrusion, blow molding defectives or wasted runners. It is also applied for granulating wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.

Adopt the design of strong structure.
The function of pneumatic auto flip-up attached on hopper and screen base.
Faster cutter replacement, easy cleaning allows rapid screen changing.
Particle size after crushing adjustable depends on screen change. (From Ø2~Ø30mm)
Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
Built-in emergency safety switch, allows automatic stopping when hopper or screen seat are being opened.
Special designs made to meet customer’s need.

Model	GP-1000RH	GP-1000BRH
Horsepower	75 ~ 125 HP	75 ~ 125 HP
Crushing Room	1,000 x 650 mm	1,000 x 800 mm
Rotating Diameter	Ø480	Ø650
R.P.M	560 rpm	560 rpm
Rotary Cutter	12 pcs	12 pcs
Stationary Cutter	4 pcs	4 pcs
Capacity	1,000 ~ 1,750 kg/hr	1,000 ~ 1,750 kg/hr
Contents	150 kg	150 kg
Machine Weight	2,800 kg	2,800 kg
Machine Size	2,450 x 1,950 x 2,600 mm	2,650 x 1,950 x 2,600 mm
