Granulator for Wedlon Automation Co., Ltd.

Product ID: GP-750RH,GP-800RH Inquiry

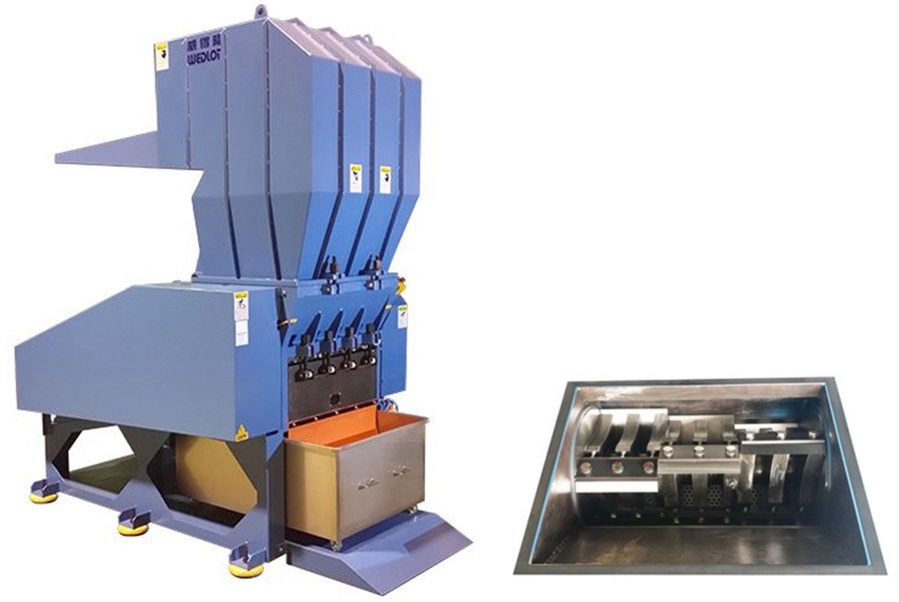

The Powerful Plastic Crusher is major for crushing the various runners, sprues and defected products from plastic injection molding machine.

Click the above image for details.

The granulator is suitable for rubber, plastic injection molding, wood, food and environment recycling industry.  It is major for granulating various objects, such as rubber, plastic injection molding, extrusion, blow molding defectives or wasted runners.  It is also applied for granulating wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.

  • Adopt the design of strong structure.
  • The function of pneumatic auto flip-up attached on hopper and screen base.
  • Faster cutter replacement, easy cleaning allows rapid screen changing.
  • Particle size after crushing adjustable depends on screen change. (From Ø2~Ø30mm)
  • Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
  • Built-in emergency safety switch, allows automatic stopping when hopper or screen seat are being opened.
  • Special designs made to meet customer’s need.
Model GP-750RH GP-800RH
Horsepower 50 ~ 75 HP 50~75HP
Crushing Room 750 x 600 mm 800 x600mm
Rotating Diameter Ø480mm Ø480 mm
R.P.M 560 rpm 560 rpm
Rotary Cutter 9 pcs 9 pcs
Stationary Cutter 2 pcs 2 pcs
Capacity 900 ~ 1,500 kg/hr 900 ~ 1,500 Kg/hr
Contents 125 kg 150kg
Machine Weight 2,450 kg 2650kg
Machine Size 2,260 x 1,500 x 2,250 mm 2100 x1600 x2200 mm
