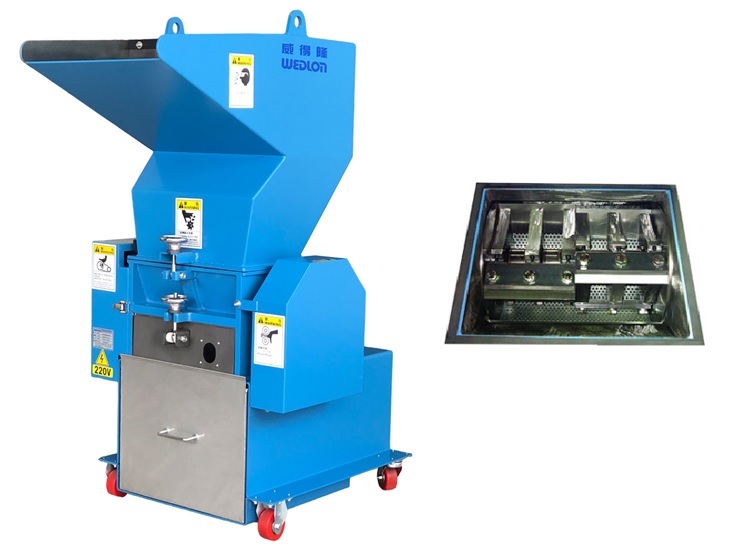

Granulator

Product ID: GP-350RH Inquiry

The granulator is suitable for rubber, plastic injection molding, wood, food and environment recycling industry. It is major for granulating various objects, such as rubber, plastic injection molding, extrusion, blow molding defectives or wasted runners. It is also applied for granulating wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.

Adopt the design of strong structure.
Faster cutter replacement, easy cleaning allows rapid screen changing.
Particle size after crushing adjustable depends on screen change. (From Ø2~Ø30mm)
Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
Built-in emergency safety switch, allows automatic stopping when hopper or screen seat are being opened.
Special designs made to meet customer’s need.

Model	GP-350RH
Horsepower	5 HP
Crushing Room	350 x 220 mm
Rotating Diameter	Ø180
R.P.M	550 rpm
Rotary Cutter	6 pcs
Stationary Cutter	2 pcs
Capacity	200 ~ 300 kg/hr
Contents	30 Kg
Machine Weight	460 kg
Machine Size	1,090 x 660 x 1,400 mm
