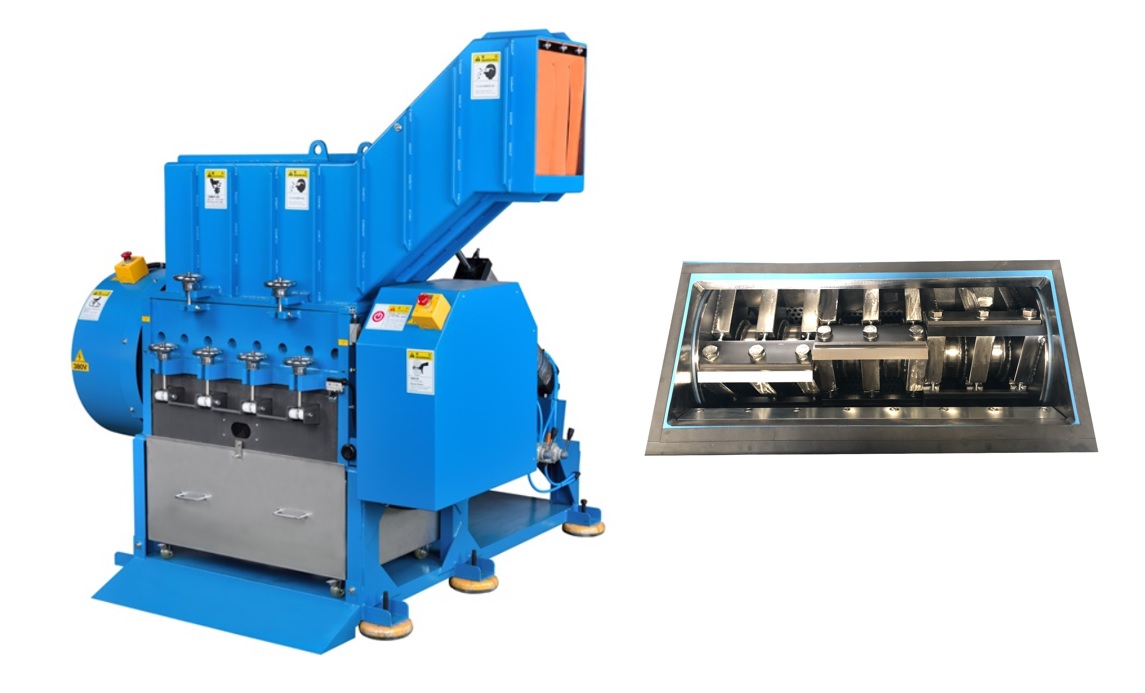

This granulator is mainly used for crushing heavy plastic lumps (which is for cleaning the material pipe).
-
Strong structural design.
-
The feeding hopper and the screen seat are equipped with the function of automatic lifting and cover of the cylinder.
-
Cutter replacement is easy, material cleaning is simple, and screen replacement is fast.
-
The size of crushed particles can be adjusted with the replacement of the screen (both Ø8~Ø30mm).
-
Optimum cutting angle design of cutter shaft, high efficiency, small vibration and less powder.
-
Built-in safety switch, when the hopper and screen seat are opened, it can automatically stop running.
-
Customized machines can be designed and manufactured according to the needs of users.
| Model |
GP-500CRD |
GP-750CRD |
| Horsepower |
30 ~ 50HP |
50~75HP |
| Crushing Room |
500 x 300 mm |
750 x300mm |
| Rotating Diameter |
Ø380 mm |
Ø380 mm |
| R.P.M |
560 rpm |
560 rpm |
| Rotary Cutter |
8 pcs |
12 pcs |
| Stationary Cutter |
3 pcs |
3 pcs |
| Capacity |
300 ~ 500 Kg/hr |
650 ~ 850 Kg/hr |
| Contents |
75 Kg |
85kg |
| Machine Weight |
1600 Kg |
2000 Kg |
| Machine Size |
1600 x 1,400 x 1750 mm |
1600 x1700 x1750 mm |
