Vertical Type Blender
Product ID: MVT-Series Inquiry

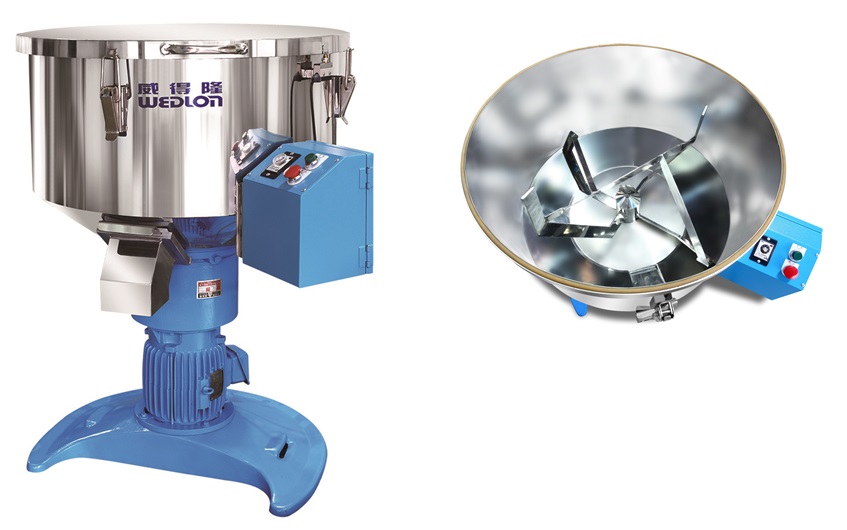

Vertical Type Blender Turbulence produced by 8 blades mixing in all directions.

Click the above image for details.

Vertical Type Blender is major for blending rubber, plastic virgin material, recycle material, colorant and masterbatches.

Vertical Type Blending Machine, turbulence produced by specail desgined blades, high-speed mixing in all directions.

Vertical Type Blending Machine, intergrated polish inside and outside, smooth surface no left over.




  • Blade's Material: SUS304BA (bright surface), special stirring blade design to generate eddy current and mix in all directions.
  • Mixing Tank's Material: SUS304BA, integrated polish inside and outside, smooth surface no leftover.
  • There is a safety switch in the mixing tank, which can automatically stop when the lid is opened.
  • Reducer: Use Taiwan's top quality reducer (brand:Liming), permanently free of oil change.
  • Discharge port: adopt manual gate.
  • Base material: SS41 low carbon steel, welded as a whole.
  • Attached timer and emergency stop switch.
Model MVT-50 MVT-100 MVT-200
Horsepower 3 HP 5 HP 10 HP
Max Capacity 50 kg 100 kg 220 Kg
R.P.M. 86 rpm 86 rpm 86 rpm
Machine Weight 230 kg 320 kg 420 kg
Machine Size 900 x 800 x 1170 mm 1090 x 950 x 1270 mm 1180 x 1110 x 1570 mm
