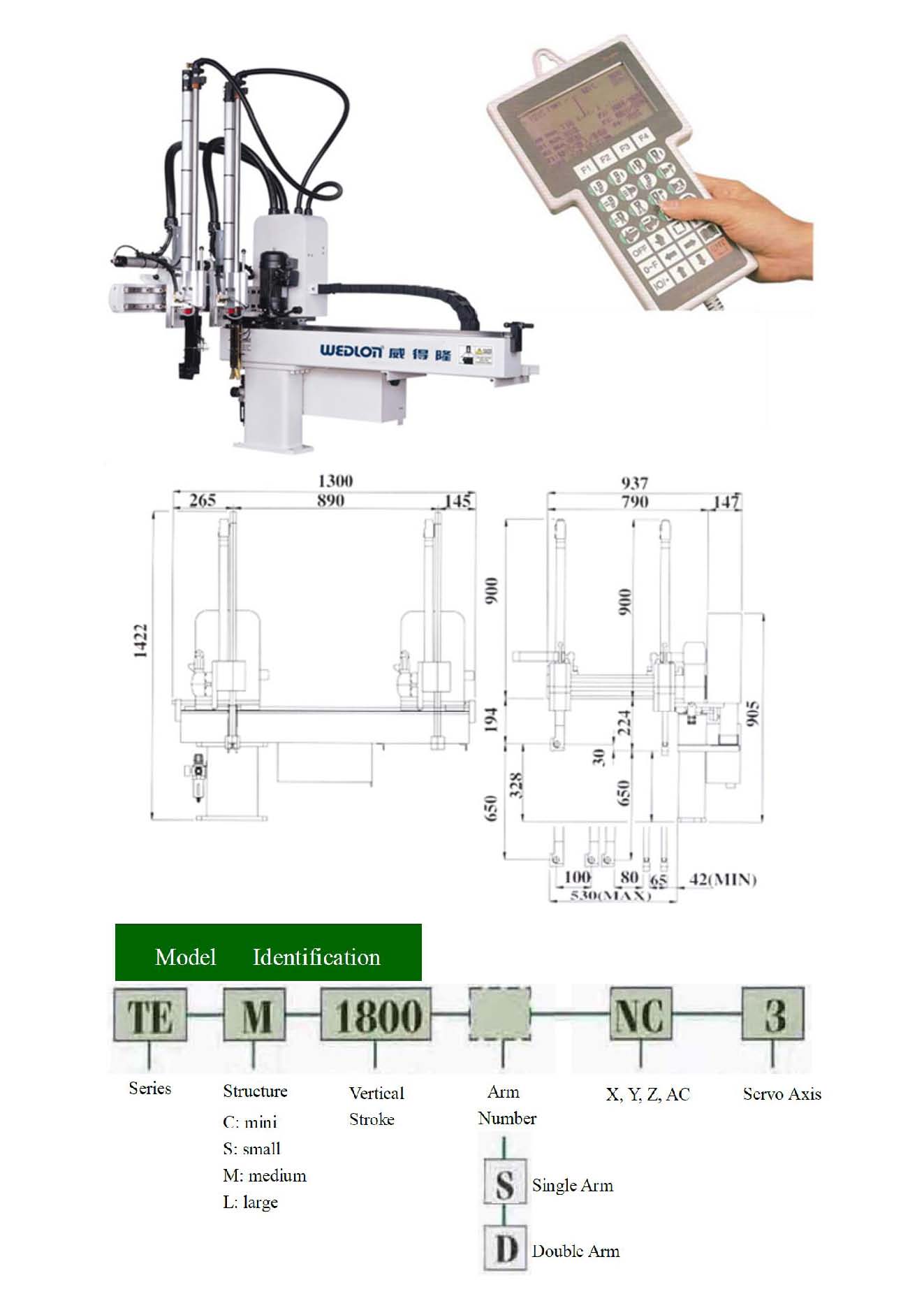

Injection Molding Robot - mini traverse type robot is extensively applied to plastic injection molding machine 50T ~ 150T.
Injection Molding Robot - mini traverse type robot can rapid take out the injection runners, sprues and finished products from the mold of plastic injection molding machine.
Injection Molding Robot - mini traverse type robot can requirement of Plastic Injection Molding Factory Automation (FA).
Dialog Controller, Easy to Control
The control system meets CE, SPI and EUROMAP standards, which is compatible with injection molding machines all over the world.
Remote controller with the LCD display for easy reading. The screen capacity is 100 Chinese characters.
Choice of English / Chinese displays on screen.
16 bit dual CPU provides powerful editing functions for deletion, insertion and replacement.
The program copy function, in conjunction with the edit and modification function, provides easy program editing and modification.
60 sets standard programs combined with 40 sets edit meets requirements for any type of mold.
Machine Interface Contains: Mold clamp interlock, injection interlock, mold eject interlock, safety door control, product counting and cycle time.
Specially designed outside mold hold function suits extra high molds and molds with core cylinders. This prevents molds bumping against the robot.
Middle Platen Confirmation Device (Optional): A safety guard to prevent the middle platen bumping against the robot resulting from incorrect positioning of middle platen.
The traverse stroke is driven by an high performance, frequency change brake motor.
Adjustable arm position increases vertical stroke.
The air operated gripper eliminates electrical short circuit problems. Sprue dimensions from 1 to 10 mm can be positively sensed.
The vertical guide rod is manufactured from SUJ2 bearing steel with hardness up to 60°hard chrome treated for low friction coefficient and lubrication free.
OEM/ODM Product
Branded Product
Buyer's Label Offered
Model
TEC-650D
Suited for Injection Molding Machine
50 ~ 150 Tons
Power Source
1Ø220V±10%,50/60Hz
Electric Consumption
3A
Air Pressure
5 kg/cm²
Vertical Drive System(Z Axis)
A:Pneumatic B:Pneumatic
Longitudinal Drive System (Y Axis)
A:Pneumatic B:Pneumatic
Traverse Drive System(X Axis)
Inverter Motor
Posture DriveSystem (A Axis)
Pneumatic
Vertical Stroke (Z Axis)mm
650
Longitudinal Stroke (Y Axis)mm
A: 100 / B: 65
Traverse Stroke (X Axis)mm
880
Posture Angle (A Axis)
90º
Air Consumption
13.5 kg/cm²
Max. Grip Weight (Jip Weight Included)
3 kg
Remark
A: Product Arm / B: Sprue Arm
