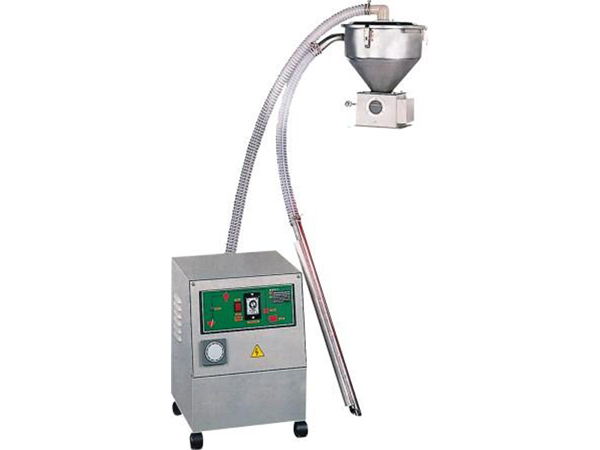

Particle Vacuum Hopper Loader is majoy applied to convey plastic particle to hopper dryer of plastic injection molding machine automatically.
- Microcomputer digital touch panel, (ONE TOUCH) automatic startup and shutdown, the operation is very easy.
- The machine and the hopper are designed separately, which is safe and convenient.
- Strong suction and good suction effect.
- Stainless vacuum hopper, integrated molding, outside paint, beautiful, durable and easy for cleaning.
- The first design for powder-removing automatic suction machine.
- The special dust collecting tank (10L) doubles the storage capacity, and the filter element can be separated for outdoor cleaning to avoid pollution in the factory and machine.
- Material shortage automatic alarm device.
- Motor reversible net cleaning.
- Motor overload protection device.
| MODEL |
ALC-1G8 |
| Machine Typ |
1∮ Separate |
| Horsepower |
1.3 HP(950W) |
| Conveying |
350 kg/hr |
| Conveying length |
8m |
| Vacuum Hopper |
G-8(∮38) |
| Hopper Dimension |
∮310L*410W*440H |
| Machine Dimension |
430L*330W*480H |
| Machine Weight |
20.5 Kg |
