L Climb Type Conveyor for Wedlon Automation Co., Ltd.

L Climb Type Conveyor
Product ID: CDHL Series Inquiry

Click the above image for details.

The Conveyor Equipment-Climb Type conveyors are major for transporting auto drop of the runners, sprues, and fine products from plastic injection molding machine and plastic blow molding machine.

  • Angles of machine body can be adjusted randomly.
  • The conveying speed can be adjusted randomly.
  • Can be conveyed directly or intermittently.(Option function)
  • Adopt imported, high quality belt which anti-electrostatic, heat-proof and oil-proof.
  • Specially designed sizes allow to be customized.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered

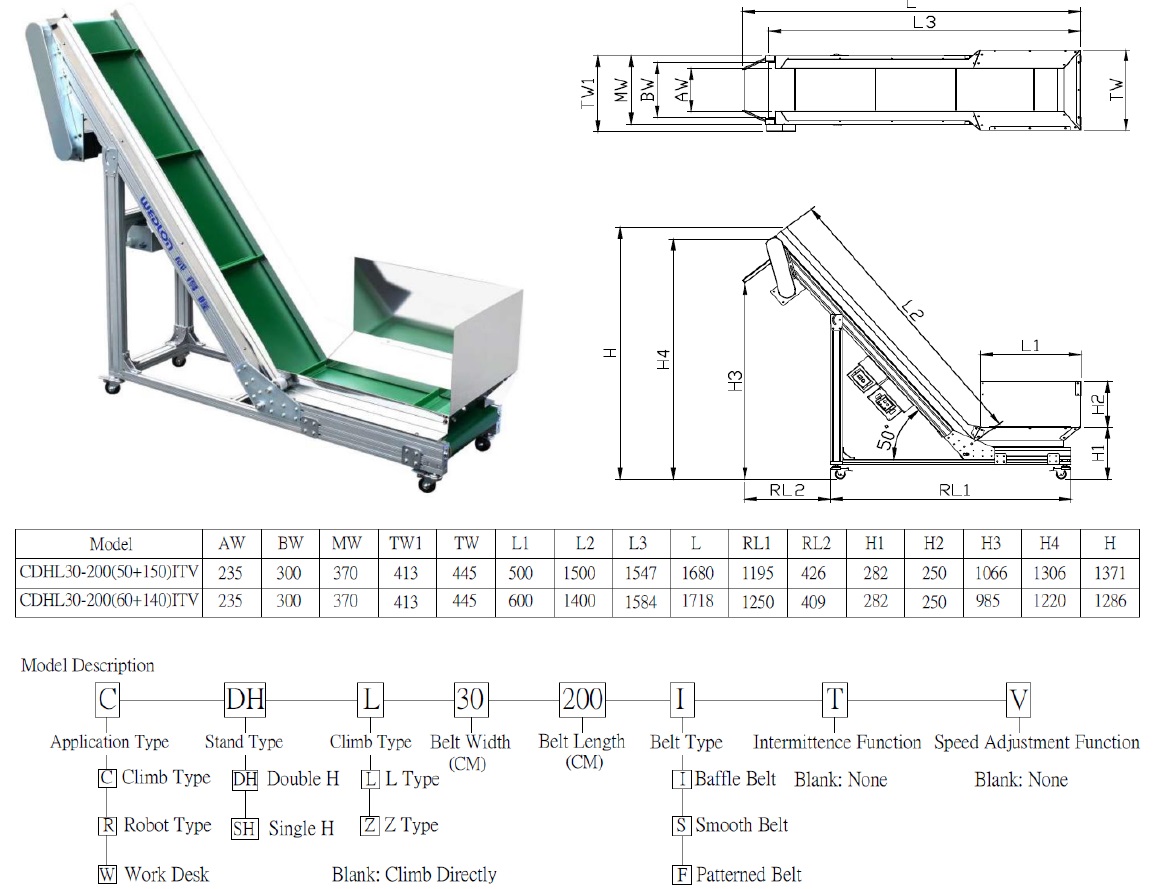

Model CDHL30-200IV CDHL40-200IV
Belt Width 300 mm 400 mm
Belt Available Width 235 mm 335 mm
Machine Length 1,718 mm 1,718 mm
Machine Width 445 mm 545 mm
Conveying Capacity 12 kg 12 kg
Power 60 w 60 w
Conveyed Directly Option Function Option Function
Conveying Speed Vibration 0~5m/min Vibration 0~5m/min
Belt Character Heat-proof, Oil-proof, Anti-electrostatic Heat-proof, Oil-proof, Anti-electrostatic
