Product ID: TWRD Series

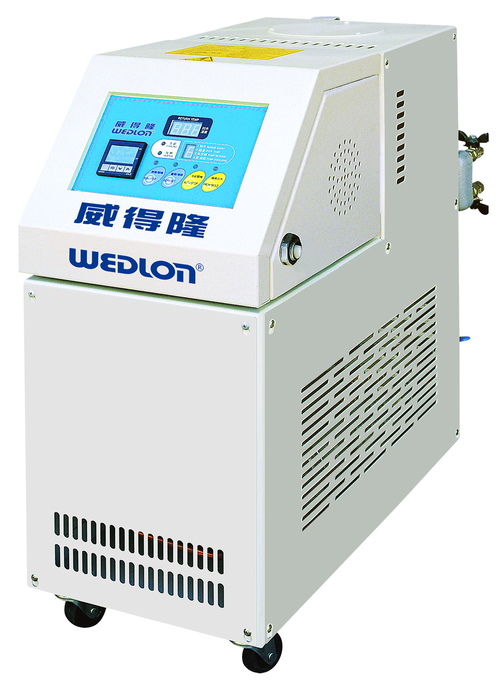

The Mold Temperature Controller-Water Circulation Mold Temperature Controller is major for controlling the temperature of the mold in the plastic injection molding machine.
Feature:
- The panel control adopted micro, processor (P.I.D.) touch type, easy to operation.
- Double micro, processor P.I.D. automatic control, precision high, save electricity over 35%.
- Employing Germany "Without seal" magnetic drive pump, durable and not leak.
- Medium circulation pie with stainless, reduces ipe block.
- Automatic start and exhaust air.
- Automatically reduce the temperature after stop pump.
- Automatically recover water circulation from the mold.
- Application DVD, CD-R, CD and OPTICS, Electronic precise products injection molding.
- Running cost low, without pollution, low noise pollution, environmental protection type.
- Circuit breaker.
- Motor reverse protective lamp.
- Water shortage protective lamp.
- Pump overload protective lamp.
- BY-PASS system.
- Buzzer.
- Overheat thermostat.
- Inlet temperature digital display gauge.
- Phase failure protecter.
- OEM/ODM Product
- Branded Product
- Buyer's Label Offered
Specification Table:
| Model | TWRD-150(0.75HP) | TWRD-150(1.5HP) |
| Temp. Control Range | 40 ~ 150°C | 40 ~ 150°C |
| Temp. Control Accuracy | ± 0.1°C | ± 0.1°C |
| Temp. Control Method | Double proportional integral derivative | Double proportional integral derivative |
| Power | 3Ø 220V 60Hz (or other) | 3Ø 220V 60Hz (or other) |
| Heat Transfer Medium | Water | Water |
| Cooling Method | Direct Cooling | Direct Cooling |
| Heating Capacity | 8 Kw | 8 Kw |
| Pump Power | 0.75 HP | 1.5 HP |
| Max Pump Flow | 35 L/min | 68 L/min |
| System Pressure | 7.2 kg/cm² | 6.8 kg/cm² |
| Power Supply | 9 Kw | 10 Kw |
| Cooling Water Pipe | 1/2" | 1/2" |
| Circulation Water Pipe | 3/4" | 3/4" |
| Cooling Water Supply | 4 kg/cm², 13 L/min | 4 kg/cm², 13 L/min |
| Machine Size | 600 x 300 x 600 mm | 600 x 300 x 600 mm |
| Weight | 55 Kg | 65 Kg |
