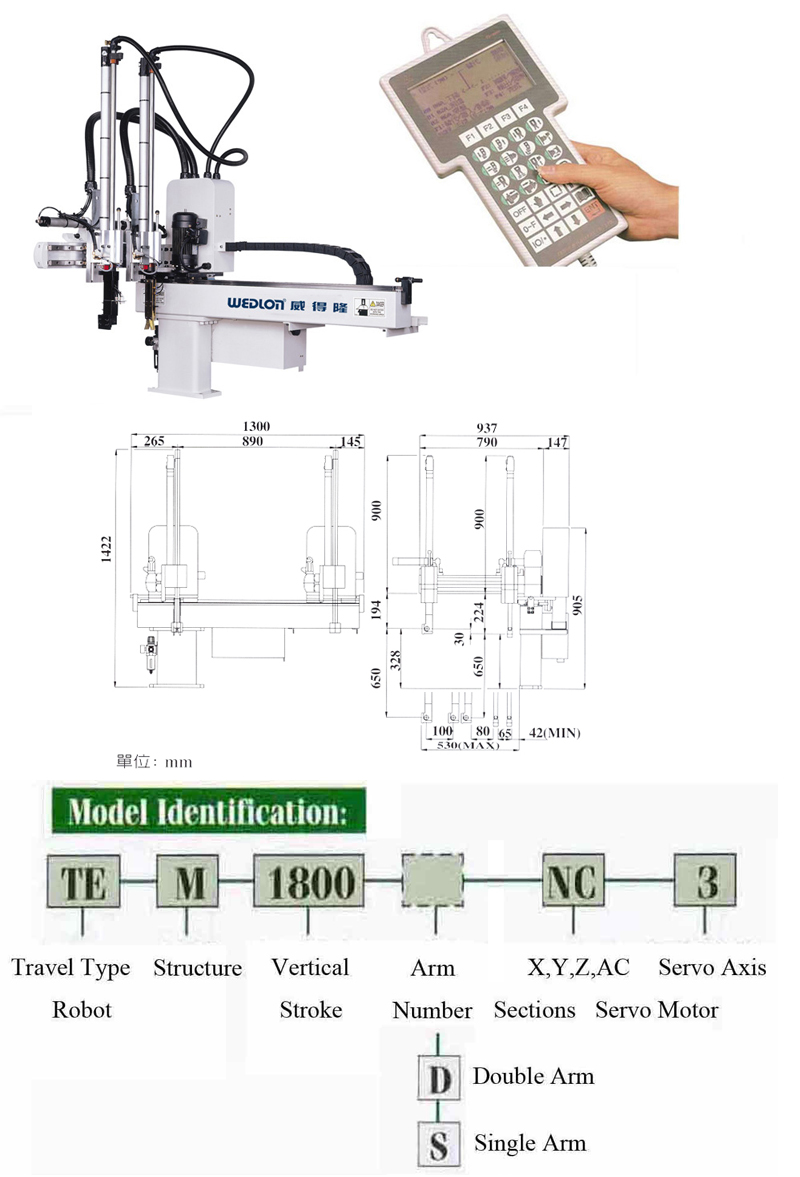

Click the above image for details.
Product ID: TEC Series
- The Injection Molding Robot-mini traversing robots are extensively applied to plastic injection molding machine 50T ~ 150T.
- The mini traversing robots can rapid take out the runners, sprues and finished products from the mold of plastic injection molding machine.
- The mini traversing robots can achieve factory online automatically system.
Feature:
- Dialog Controller, Easy to Control
- The control system meets CE, SPI and EUROMAP standards, which is compatible with injection molding machines all over the world.
- Remote controller with the LCD display for easy reading. The screen capacity is 100 Chinese characters.
- Choice of English / Chinese displays on screen.
- 16 bit dual CPU provides powerful editing functions for deletion, insertion and replacement.
- The program copy function, in conjunction with the edit and modification function, provides easy program editing and modification.
- 60 sets standard programs combined with 40 sets edit meets requirements for any type of mold.
- Machine Interface Contains: Mold clamp interlock, injection interlock, mold eject interlock, safety door control, product counting and cycle time.
- Specially designed outside mold hold function suits extra high molds and molds with core cylinders. This prevents molds bumping against the robot.
- Middle Platen Confirmation Device (Optional): A safety guard to prevent the middle platen bumping against the robot resulting from incorrect positioning of middle platen.
- The traverse stroke is driven by an high performance, frequency change brake motor.
- Adjustable arm position increases vertical stroke.
- The air operated gripper eliminates electrical short circuit problems. Sprue dimensions from 1 to 10 mm can be positively sensed.
- The vertical guide rod is manufactured from SUJ2 bearing steel with hardness up to 60°hard chrome treated for low friction coefficient and lubrication free.
- OEM/ODM Product
- Branded Product
- Buyer's Label Offered
Specification Table:
| Model | TEC-650 (S/D) |
| Suited for Injection Molding Machine | 50 ~ 150 Tons |
| Power Source | 1Ø220V±10%,50/60Hz |
| Electric Consumption | 3A |
| Air Pressure | 6 kg/cm² |
| Vertical Drive System(Z Axis) | A:Air Cylinder B:Air Cylinder |
| Longitudinal Drive System (Y Axis) | A:Air Cylinder B:Air Cylinder |
| Traverse Drive System(X Axis) | Frequency Change Motor |
| Posture DriveSystem (C Axis) | Air Cylinder |
| Vertical Stroke (Z Axis)mm | 650 |
| Longitudinal Stroke (Y Axis)mm | A: 100 / B: 65 |
| Traverse Stroke (X Axis)mm | 880 |
| Posture Angle (C Axis) | 90º |
| Air Consumption (AT Pressure) | 13.5 kg/cm² |
| Max. Grip Weight (Jip Weight Included) |
3 kg |
| Remark | A: Product Arm / B: Sprue Arm |
