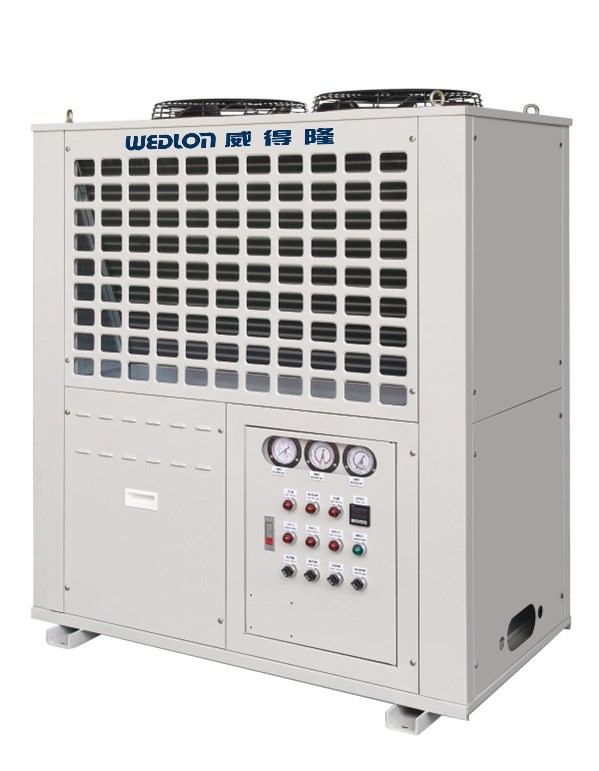

Click the above image for details.
Product ID: CW/ CA Series
The Chilling Machine-Cooling Machine is major for cooling the mold of plastic injection molding machine.
Feature:
- Employing all-new, imported compressor, complete with all-new import certificates.
- Employing superb imported components, with longer terms of service.
- High efficiency evaporator and cooling condenser in use, to help save no less than 30% of your power rates.
- High precision digital display, for the temperature control.
- Employing two sets of compressors which can be used jointly or independent. (Over C-10)
- Complete with safety protection and error indication system.
- Micro-processing controller, easy operation.
- The weld of brass pipe is non-exidization (nitrogen flushing).
- OEM/ODM Product
- Branded Product
- Buyer's Label Offered
Specification Table:
| Model | UNIT | CW/ CA-2 | CW/ CA-3 | CW/ CA-5 | CW/ CA-7 | CW/ CA-10 | CW/ CA-15 | CW-20 | CW-25 | CW-30 | CW-40 | CW-50 |
| Control range | °C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C | 8°C ~ 30°C |
| Power | 3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
3φ220V 60HZ (or other) |
|
| Cooling capacity | BTU/HR (60HZ/50HZ) |
24,000/ 19,700 |
36,000/ 32,900 |
60,000/ 51,700 |
90,000/ 76,400 |
120,000/ 103,500 |
180,000/ 152,800 |
240,000/ 202,000 |
300,000/ 248,000 |
360,000/ 296,000 |
480,000/ 372,000 |
610,000/ 496,000 |
| Comp power | HP | 2 | 3 | 5 | 7-1/2 | 10 (5 x 2) |
15 (7-1/2 x 2) |
20 (10 x 2) |
25 (12-1/2 x 2) |
30 (15 x 2) |
40 (13.5 x 3) |
50 (12.5 x 4) |
| Pump power | HP | 0.5 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Max. Pump pressure | KG/cm² | 2 | 2.2 | 2.3 | 2.3 | 2.7 | 2.2 | 2.2 | 2.3 | 2.3 | 2.3 | 2.3 |
| Max. Pump flow | L/Min | 108 | 153 | 162 | 162 | 308 | 490 | 490 | 654 | 654 | 654 | 654 |
| Max. Power supply | KW | 1.9 | 3 | 4.5 | 6.4 | 9 | 1.3 | 16.5 | 21 | 24.8 | 32.3 | 40 |
| Tank capacity | Liter | 25 | 30 | 75 | 75 | 120 | 180 | 180 | 250 | 250 | 250 | 250 |
| Chilling water pipe | Inch | 3/4 | 1 | 1-1/4 | 1-1/4 | 1-1/2 | 2 | 2 | 2-1/2 | 3 | 3 | |
| Cooling water pipe | Inch | 3/4 | 1 | 1-1/4 | 1-1/4 | 1-1/2 | 2 | 2 | 2-1/2 | 3 | 3 | |
| L x W x H | cm | 98 x 60 x 100 | 98 x 60 x 100 | 120 x 60 x 123 | 160 x 70 x 154 | 160 x 70 x 154 | 160 x 70 x 154 | 213 x 90 x 160 | 213 x 90 x 160 | 213 x 90 x 160 | 253 x 95 x 176 | 253 x 95 x 176 |
| Weight | KG | 200 | 230 | 370 | 450 | 750 | 900 | 1110 | 1300 | 1500 | 1700 | 1900 |
