Powerful Granulator for Wedlon Automation Co., Ltd.

Powerful Granulator
Product ID: GP-1250R,GP-1250BR Inquiry
The Powerful Plastic Shredding Machine is major for crushing the various runners, sprues and defected products from plastic injection molding machine.

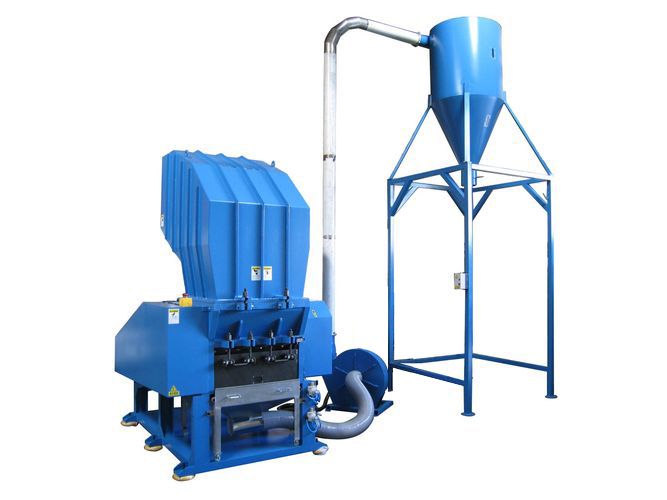

Click the above image for details.

The Powerful Granulator is suitable for rubber, plastic, wood, food and environment recycling industry.  It is major for the various objects, such as rubber, plastics, extrusion, blow defectives or wasted runners.  It is also applied for crushing wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.

  • Adopt the design of strong structure.
  • The function of pneumatic auto flip-up attached on hopper and screen base.
  • Faster cutter replacement, easy cleaning allows rapid screen changing.
  • Particle size after crushing adjustable depends on screen change. (From Ø2~Ø30mm)
  • Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
  • Built-in emergency safety switch, allows automatic stopping when hopper or screen seat are being opened.
  • Special designs made to meet customer’s need.
Model GP-1250R GP-1250BR
Horsepower 75 ~ 125 HP 75 ~ 125 HP
Crushing Room 1,250 x 650 mm 1,250 x 800 mm
Rotating Diameter Ø480 Ø650
R.P.M 560 rpm 560 rpm
Rotary Cutter 15 pcs 15 pcs
Stationary Cutter 4 pcs 4 pcs
Capacity 1,200 ~ 1,850 kg/hr 1,500 ~ 2,500 kg/hr
Contents 170 kg 150 kg
Machine Weight 3,150 kg 3,150 kg
Machine Size 2,450 x 2,200 x 2,750 mm 2,650 x 2,200 x 2,750 mm
