Granulator for Wedlon Automation Co., Ltd.

Granulator
Product ID: GP-400RH Inquiry

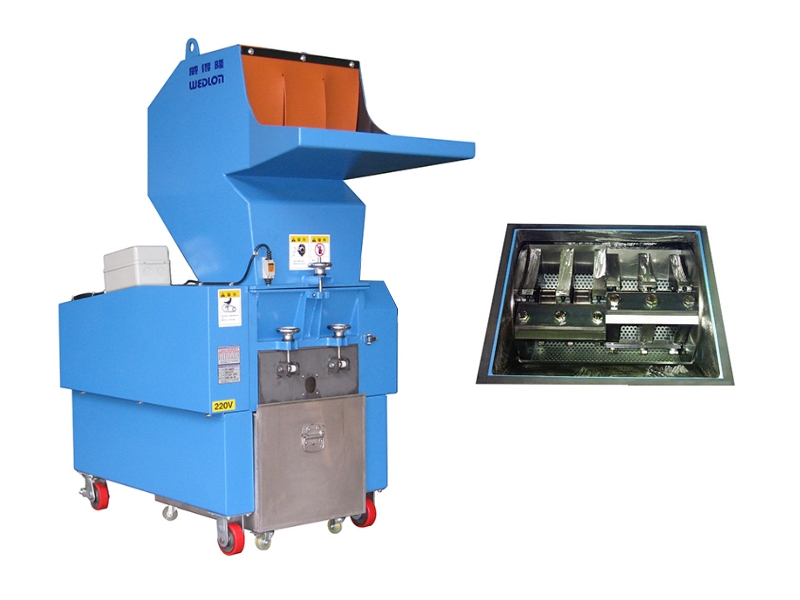

Click the above image for details.

The granulator is suitable for rubber, plastic injection molding, wood, food and environment recycling industry.  It is major for granulating various objects, such as rubber, plastic injection molding, extrusion, blow molding defectives or wasted runners.  It is also applied for granulating wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.

  • Adopt the design of strong structure.
  • Faster cutter replacement, easy cleaning allows rapid screen changing.
  • Particle size after crushing adjustable depends on screen change. (From Ø2~Ø30mm)
  • Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
  • Built-in emergency safety switch, allows automatic stopping when hopper or screen seat are being opened.
  • Special designs made to meet customer’s need.
Model GP-400RH
Horsepower 7.5 ~ 15 HP
Crushing Room 400 x 280 mm
Rotating Diameter Ø240
R.P.M 420 rpm
Rotary Cutter 6 pcs
Stationary Cutter 2 pcs
Capacity 300 ~ 400 kg/hr
Contents 75 kg
Machine Weight 530 kg
Machine Size 1,400 x 760 x 1,600 mm
