Powerful Granulator for Wedlon Automation Co., Ltd.

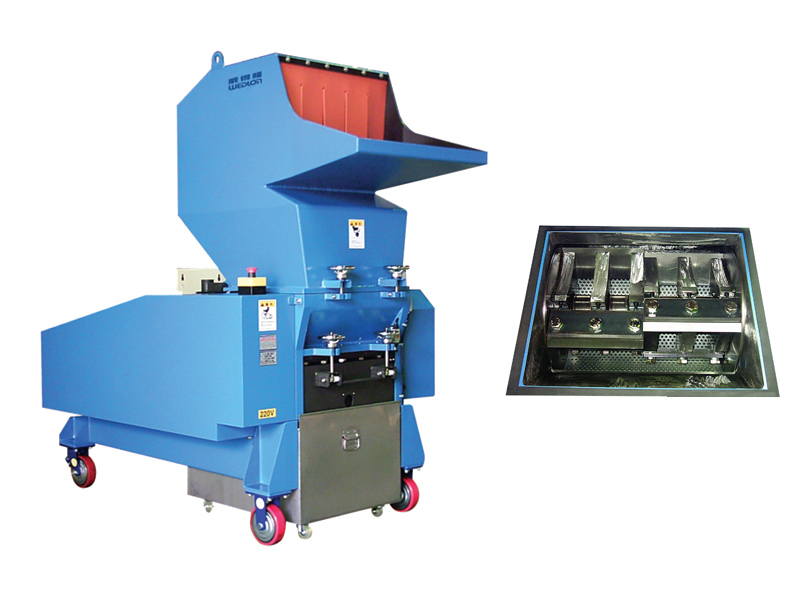

Powerful Granulator
Product ID: GP-500RH, GP-550RH Inquiry

Click the above image for details.

The Powerful Granulator is suitable for rubber, plastic, wood, food and environment recycling industry.  It is major for the various objects, such as rubber, plastics, extrusion, blow defectives or wasted runners.  It is also applied for crushing wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.

  • Adopt the design of strong structure.
  • Faster cutter replacement, easy cleaning allows rapid screen changing.
  • Particle size after crushing adjustable depends on screen change. (From Ø2~Ø30mm)
  • Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
  • Built-in emergency safety switch, allows automatic stopping when hopper are being opened.
  • Special designs made to meet customer’s need.
Model GP-500RH GP-550RH
Horsepower 15 ~ 40 HP 25 ~ 50 HP
Crushing Room 500 x 420 mm 550 x 480 mm
Rotating Diameter Ø380mm Ø380mm
R.P.M 560 rpm 560 rpm
Rotary Cutter 6 pcs 6 pcs
Stationary Cutter 2 pcs 2 pcs
Capacity 500 ~ 1,000kg/hr 500 ~ 1,000kg/hr
Contents 100 kg 100 kg
Machine Weight 1,200 kg 1680 kg
Machine Size 1,900 x 1,100 x 1,800 mm 2,000 x 1,200 x 1,800 mm
