Water Circulation Mold Temperature Controller for Wedlon Automation Co., Ltd.

Water Circulation Mold Temperature Controller
Product ID: TWRD Series Inquiry

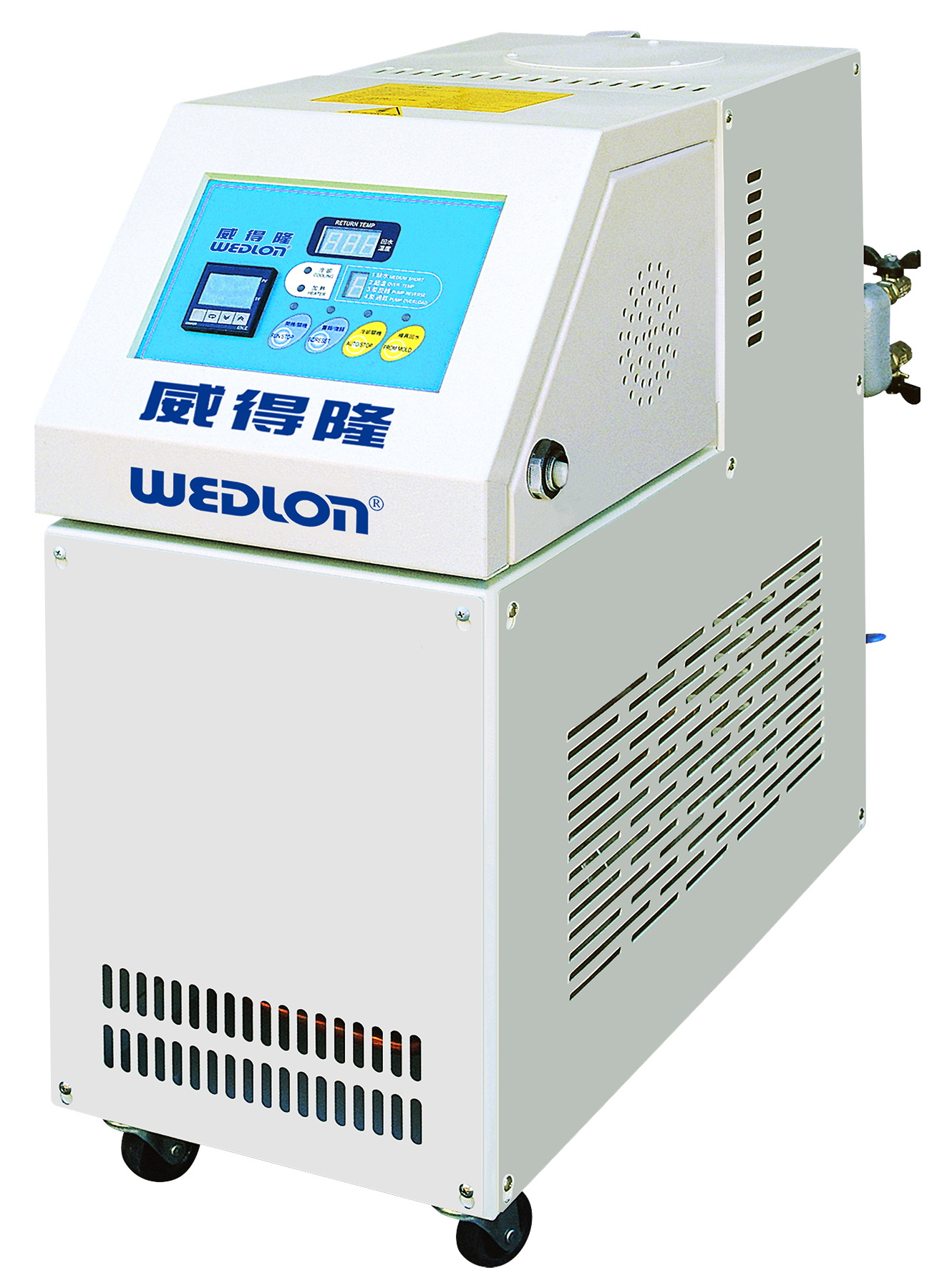

Water Circulation Mold Temperature Controller

Click the above image for details.

Water Circulation Mold Temperature Controller is major for controlling the temperature of the mold and the roller in the plastic machine.

  • The panel control adopted micro, processor (P.I.D.) touch type, easy to operation.
  • Double micro, processor P.I.D. automatic control, precision high, save electricity over 35%.
  • Employing Germany "Without seal" magnetic drive pump, durable and not leak.
  • Medium circulation pie with stainless, reduces ipe block.
  • Automatic start and exhaust air.
  • Automatically reduce the temperature after stop pump.
  • Automatically recover water circulation from the mold.
  • Application DVD, CD-R, CD and OPTICS, Electronic precise products injection molding.
  • Running cost low, without pollution, low noise pollution, environmental protection type.
  • Circuit breaker.
  • Motor reverse protective lamp.
  • Water shortage protective lamp.
  • Pump overload protective lamp.
  • BY-PASS system.
  • Buzzer.
  • Overheat thermostat.
  • Inlet temperature digital display gauge.
  • Phase failure protecter.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model TWRD-150(0.75HP) TWRD-150(1.5HP)
Temp. Control Range 40 ~ 150°C 40 ~ 150°C
Temp. Control Accuracy ± 0.1°C ± 0.1°C
Temp. Control Method Double proportional integral derivative Double proportional integral derivative
Power 3Ø 220V 60Hz (or other) 3Ø 220V 60Hz (or other)
Heat Transfer Medium Water Water
Cooling Method Direct Cooling Direct Cooling
Heating Capacity 8 Kw 8 Kw
Pump Horsepower 0.75 HP 1.5 HP
Max Pump Flow 35 L/min 68 L/min
System Pressure 7.2 kg/cm² 6.8 kg/cm²
Power Supply 9 Kw 10 Kw
Cooling Water Pipe 1/2" 1/2"
Circulation Water Pipe 3/4" 3/4"
Cooling Water Supply 4 kg/cm², 13 L/min 4 kg/cm², 13 L/min
Machine Size 590 x 300 x 660 mm 590 x 300 x 660 mm
Weight 55 Kg 65 Kg
