Water Circulation Mold Temperature Controller
Product ID: TWD Series Inquiry

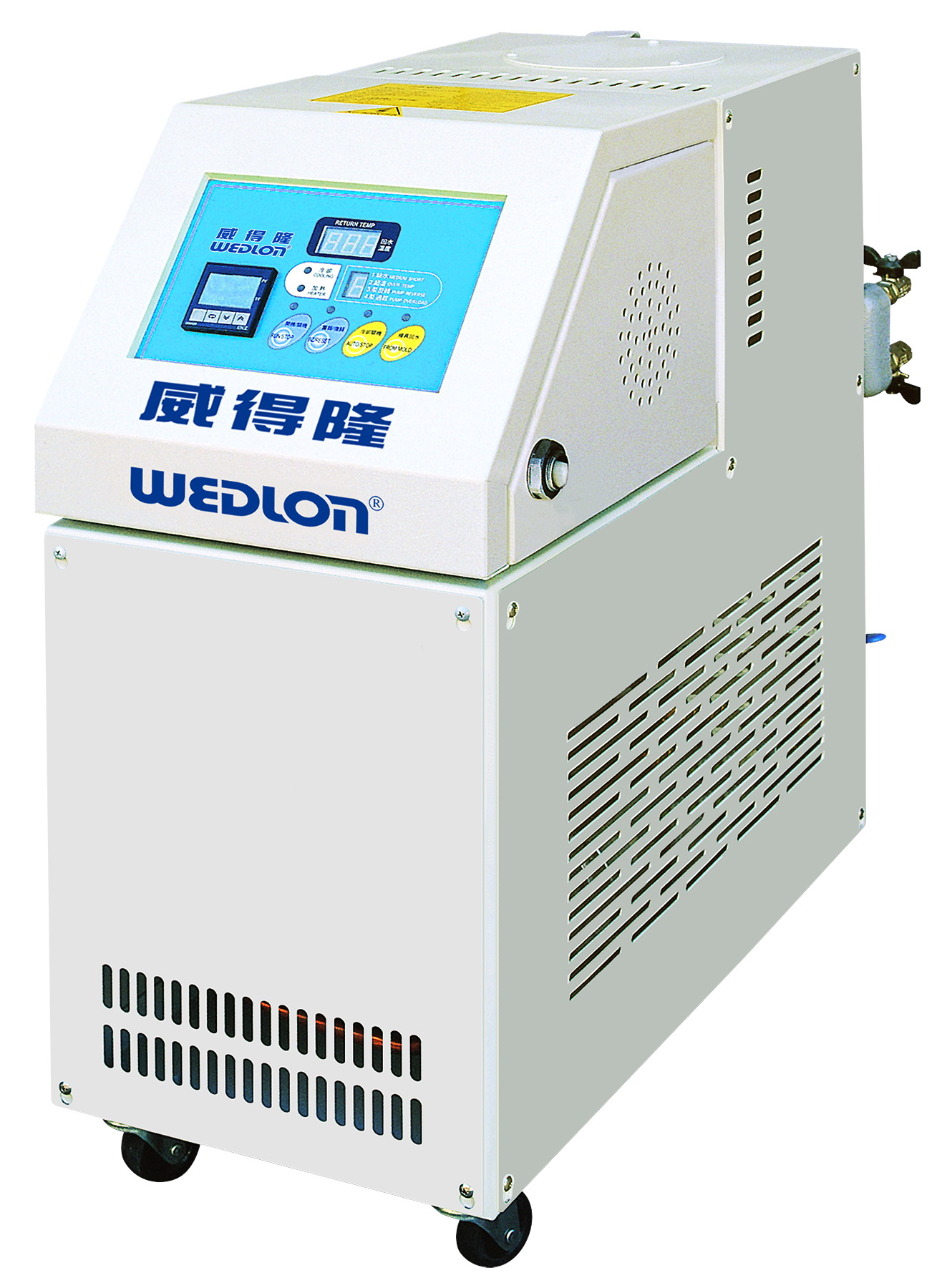

Water Circulation Mold Temperature Controller

Click the above image for details.

Water Circulation Mold Temperature Controller is major for controlling the temperature of the mold and the roller in the plastic machine.

  • The temperature control adopted micro processor (P.I.D) touching type ,there is stored automatic calculation inside, precise and reliable, it can control within ± 1°C and save electricity over 35%.
  • Medium circulation pipe with stainless steel.
  • Automatic star and exhaust air.
  • Circuit beaker.
  • Motor reverse protective lamp.
  • Water shortage protective lamp.
  • Pump overload protective lamp.
  • Outlet water pressure gauge.
  • Overheat thermostat.
  • By-Pass system.
  • Buzzer.
  • Inlet temperature digital display gauge.
  • Phase failure protecter.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model TWD-150(1HP) TWD-180(1.5HP)
Temp. Control Range 40 ~ 150°C 40 ~ 180°C
Temp. Control Accuracy ± 1°C ± 1°C
Temp. Control Method Double proportional integral derivative Double proportional integral derivative
Power 3Ø 220V 60Hz (or other) 3Ø 220V 60Hz (or other)
Heat Transfer Medium Water Water
Cooling Method Indirect Cooling Indirect Cooling
Heating Capacity 8 Kw 8 Kw
Pump Horsepower 1 HP 1.5 HP
Max Pump Flow 60 l/min 68 l/min
System Pressure 6 kg/cm² 10 kg/cm²
Power Supply 9 Kw 10 Kw
Cooling Water Pipe 1/2" 1/2"
Circulation water Pipe 3/8" x 4" (or other) 3/8" x 4" (or other)
Machine Size 700 x 350 x 880 mm 700 x 350 x 880 mm
Weight 80 Kg 95 Kg
