Oil Circulation Mold Temperature Controller
Product ID: TOD Series Inquiry

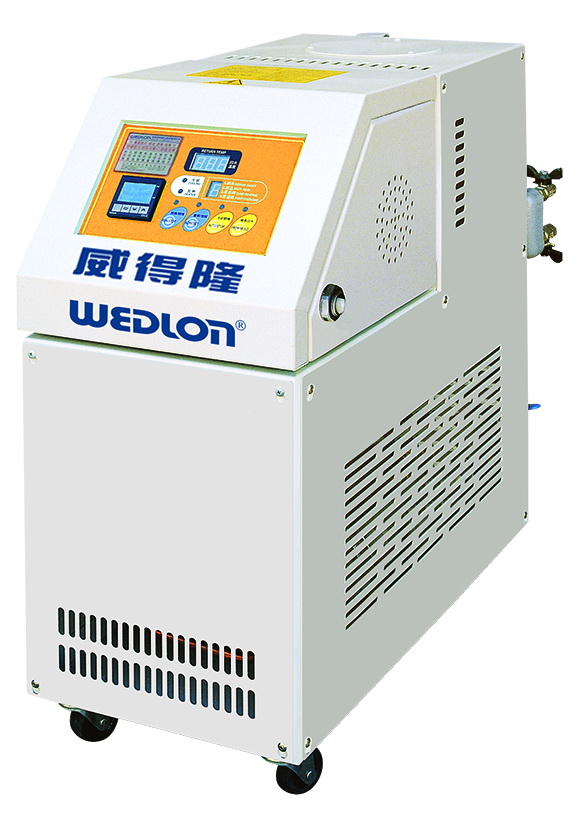

Oil Circulation Mold Temperature Controller

Click the above image for details.

Oil Circulation Mold Temperature Controller is major for controlling the temperature of the mold and the roller in the plastic machine.

  • The temperature control adopted micro processor (P.I.D) touching type ,there is stored automatic calculation inside, precise and reliable, it can control within ± 1°C and save electricity over 35%.
  • Medium circulation pipe with stainless steel.
  • All series adopting speck pump from Germany.
  • Automatically reduce the temperature after stop pump,automatically shut down after set time.
  • Automatically recover oil circulation from the mold.
  • Circuit beaker.
  • Motor reverse elective lamp.
  • Oil shortage protective lamp.
  • Pump overload protective lamp.
  • Overheat thermost protective lamp.
  • By-Pass system.
  • Buzzer.
  • Inlet temperature digital display gauge.
  • Phase failure protecter.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model TOD-300(1.5HP)
Temp. Control Range 60 ~ 300°C
Temp. Control Accuracy ± 1°C
Temp. Control Method Double proportional integral derivative
Power 3Ø 220V 60Hz (or other)
Heat Transfer Medium Heat Transfer Oil
Cooling Method Indirect Cooling
Heating Capacity 12 Kw
Pump Horsepower 1.5 HP
Max Pump Flow 65 l/min
Max. Pump Pressure 6.5 kg/cm²
Expansion Tank Capacity 15 liter
Cooling Water Pipe 1/2"
Circulation Oil Pipe 3/8"x 4
Machine Size 700 x 350 x 880 mm
Weight 80 Kg
