Mold Protection Monitor for Wedlon Automation Co., Ltd.

Mold Protection Monitor
Product ID: PRO-800P Inquiry

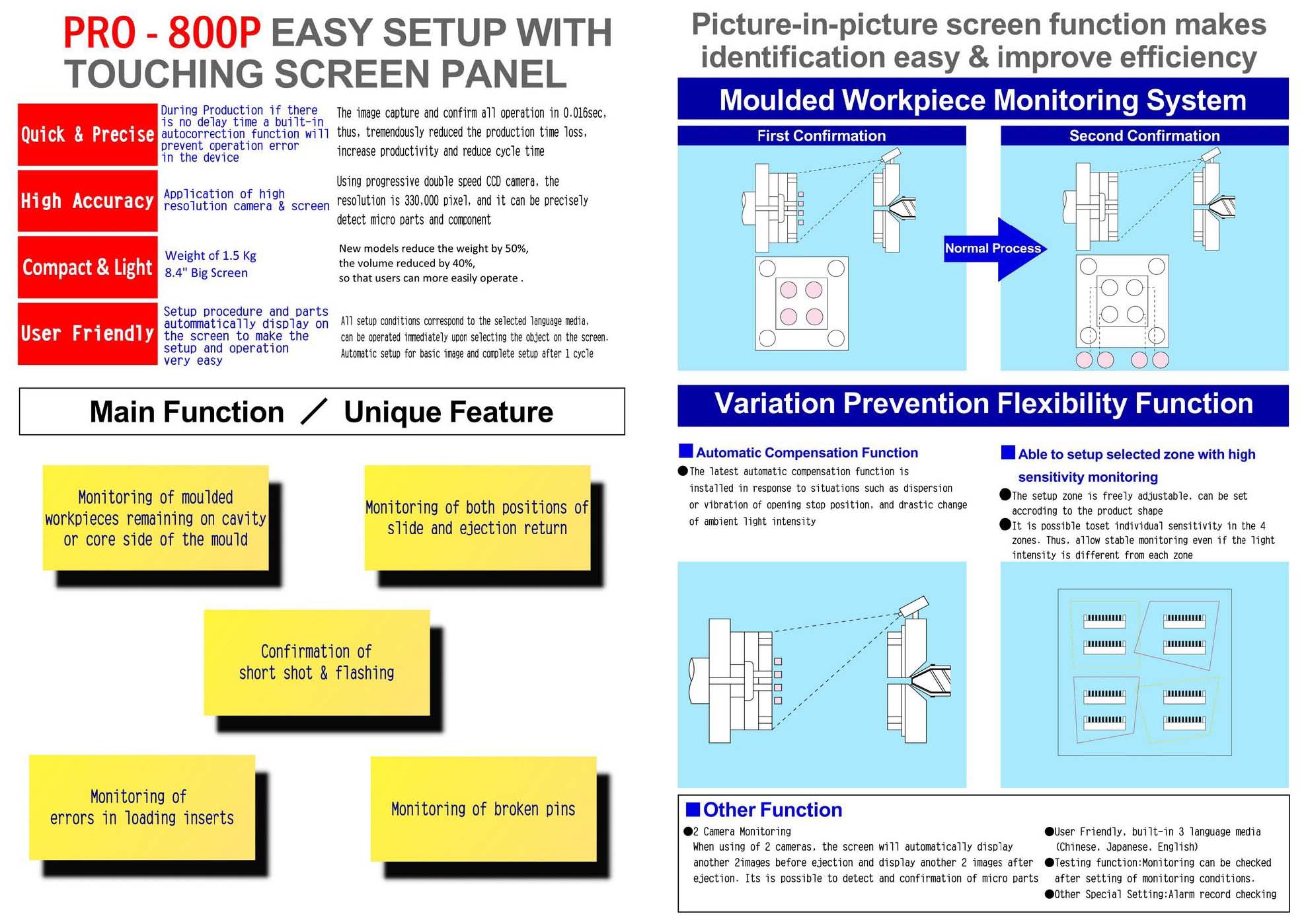

Click the above image for details.


  • To monitor plastic injection products remaining in the cavity.
  • To monitor plastic injection defective product and burrs.
  • To monitor wrong  insert position of parts.
  • To monitor mold's slide and ejector pin return.
  • To monitor mold's ejector pin and guild pin fracture or deformation.

1. When the mold opening position is unstable and vibration, or the surrounding brightness changes rapidly, it is equipped with automatic correction function.
2. User-friendly interface, you can choose three languages (Chinese, English, Japanese), with touch screen, setting is fast and easy.

Model

PRO-800P

Camera Resolution

1280(H)×1024(V)

Minimum processing  time

0.016sec

Monitor

8.4" 800×480

Double Camera lens

Option

Input Voltage

AC100V-240V

Power consumption

40W

Environment temperature

0-45℃

Photo Take Speed

60pcs / sec

Dimension

L245×W183×H72(mm)

E-Catalog Download
