Low Speed Crusher for Wedlon Automation Co., Ltd.

Low Speed Crusher
Product ID: GL Series Inquiry

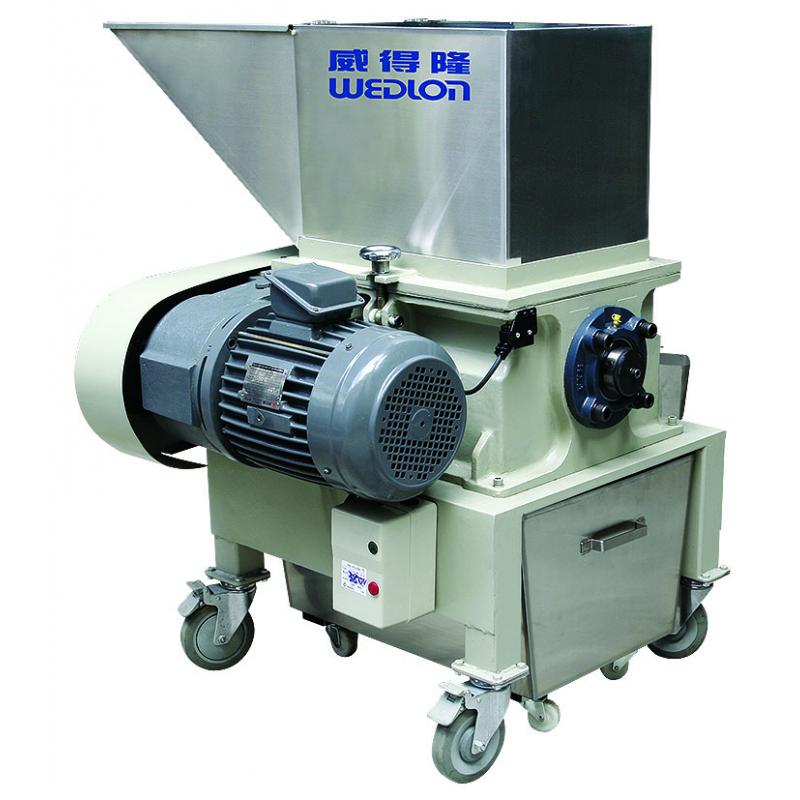

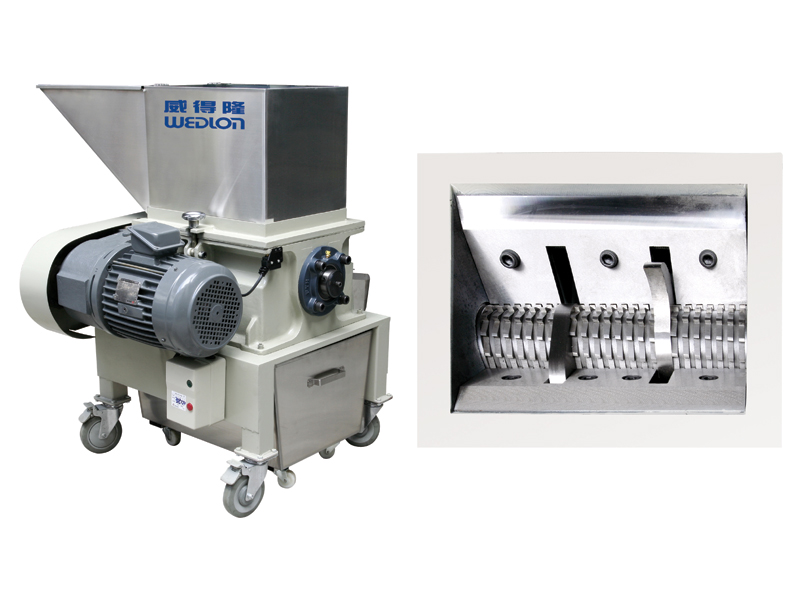

The Low Speed Plastic Shredder is major for shreding the various materials

Click the above image for details.

The Low Speed Crusher is major for crushing the various materials "plastic. rubber . wood. Chinese herb. Tea stem. paper. glass .feed . runner and Sprue etc."



  • Suitable with robot on-the-spot crushing and recycling immediately,
  • Low revolution speed, high torque force, no noise sound,space-saved.
  • Specially-designed blades makes crushing evenly and no powder left.There's not screen required.
  • Liftable hopper (SUS304) for cleaning and moving easily.
  • Special designs made to meet customer's needs.
Model GL-250D GL-280D GL-300D GL-340D GL-420D
Horsepower 2 HP 2 HP 3 HP 3 HP 5 HP
Inlet Size 250 x 250 mm 280 x 280 mm 300 x 340 mm 340 x 340 mm 420 x 340 mm
Cuter Size 4.5 or 5.5 mm 4.5 or 5.5 mm 4.5 or 6.0 mm 4.5 or 6.0 mm 6.0 mm
R.P.M 30 rpm 30 rpm 30 rpm 30 rpm 30 rpm
Machine Weight 210 kg 250 kg 270 Kg 300 Kg 350 kg
Machine Size

700x650x1000mm



800x750x1050mm



850x850x1150mm



850x850x1150mm



1000x850x1200mm



Capacity 25 kg/hr 30 kg/hr 45 kg/hr 50 kg/hr 60 kg/hr
Contents 25 kg 35 kg 40 kg 40 kg 50 kg
