Injection Molding Robot - Small Traverse Type Robot
Product ID: TES Series Inquiry
Injection Molding Robot-small traverse type robots are extensively applied to plastic injection molding machine 50T ~ 350T.

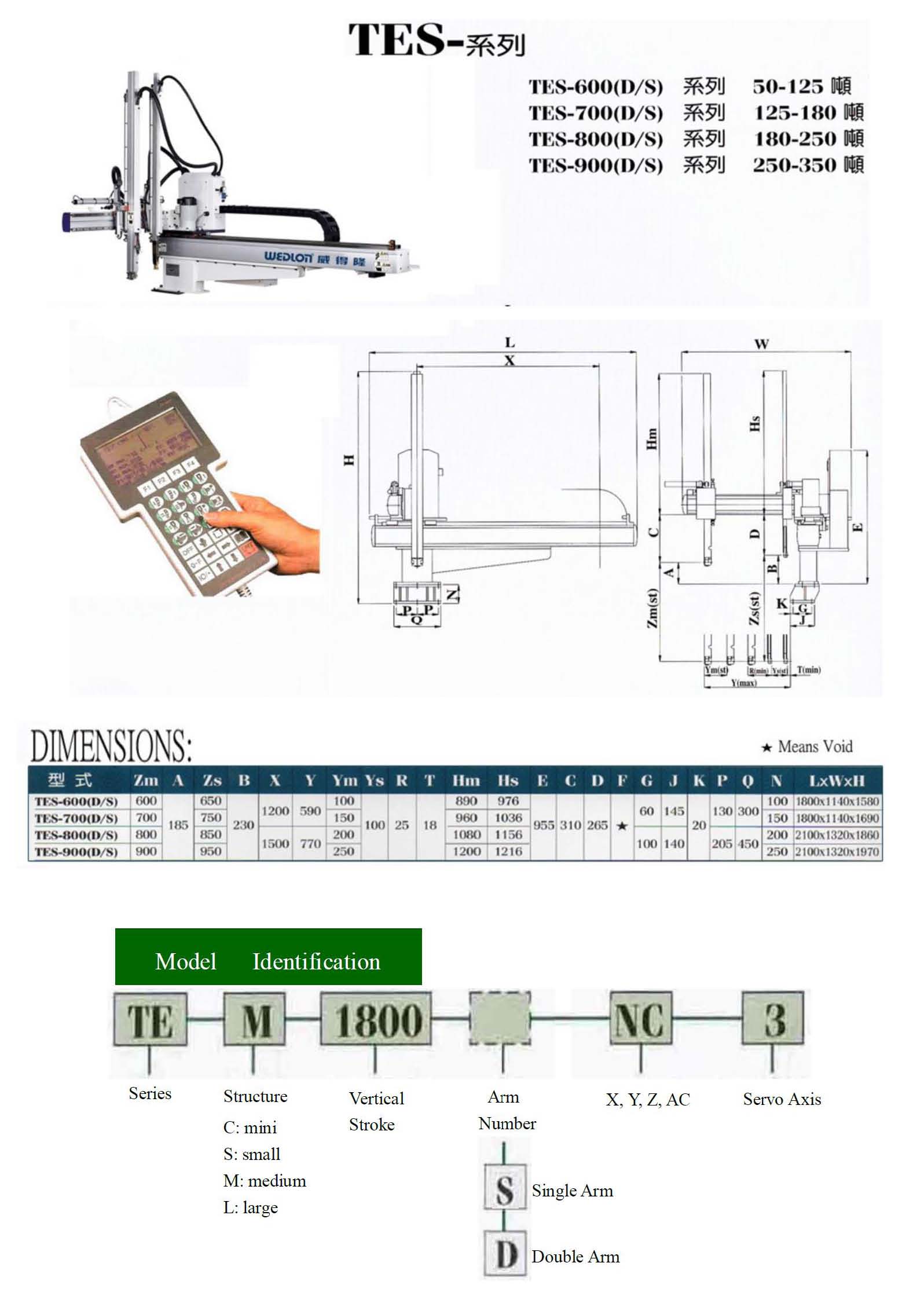

Click the above image for details.

  • Injection Molding Robot - small traverse robot is extensively applied to plastic injection molding machine 50T ~ 350T.
  • Injection Molding Robot - small traverse type robot can rapid take out the injection runners, sprues and finished products from the mold of plastic injection molding machine.
  • Injection Molding Robot - Small traverse type robot can achieve requirement of Plastic Injection Molding Factory Automation (FA).


  • Dialog Controller, Easy to Control
    • The control system meets CE, SPI and EUROMAP standards, which is compatible with injection molding machines all over the world.
    • Remote controller with the LCD display for easy reading. The screen capacity is 100 Chinese characters.
    • Choice of English / Chinese displays on screen.
    • 16 bit dual CPU provides powerful editing functions for deletion, insertion and replacement.
    • The program copy function, in conjunction with the edit and modification function, provides easy program editing and modification.
    • 60 sets standard programs combined with 40 sets edit meets requirements for any type of mold.
    • Machine Interface Contains: Mold clamp interlock, injection interlock, mold eject interlock, safety door control, product counting and cycle time.
    • Specially designed outside mold hold function suits extra high molds and molds with core cylinders. This prevents molds bumping against the robot.
    • Middle Platen Confirmation Device (Optional): A safety guard to prevent the middle platen bumping against the robot resulting from incorrect positioning of middle platen.
  • The traverse stroke is driven by an high performance, frequency change brake motor.
  • The traverse stroke is controlled by an encoder, providing up to nine points of product release,and controlled directly by the settings of the operation panel.
  • The machine has an innovative automatic speed slow-down on the vertical stroke for the product and sprue arm when in manual control mode. This will avoid operation error and provide protection for the mole.
  • The product and sprue arms feature fast pick and slow release, which provide a safer working area.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model TES-600 (S/D) TES-700 (S/D) TES-800 (S/D) TES-900 (S/D)
Suited For Injection Molding Machine 50 ~ 125 Tons 125 ~ 180 Tons 180 ~ 250 Tons 250 ~ 350 Tons
Power Source 1Ø220V±10%,50/60Hz

Electric Consumption 3A

Air Pressure 5 kg/cm²

Vertical Drive System(Z Axis) A:Pneumatic B:Pneumatic

Longitudinal Drive System (Y Axis) A:Pneumatic B:Pneumatic

Traverse Drive System(X Axis) Inverter Motor + Encoder

Posture Drive System(A Axis) Pneumatic

Vertical Stroke (Z Axis)mm A: 600 / B: 650 A: 700 / B: 750 A: 800 / B: 850 A: 900 / B: 950
Longitudinal Stroke (Y Axis)mm A: 150 / B: 100 A: 150 / B: 100 A: 250 / B: 150 A: 250 / B: 150
Traverse Stroke (X Axis)mm 1208 1208 1508 1508
Posture Angle (A Axis) 90º

Max. Grip Weight (Jip Weight Included) 5 kg

Air Consumption  D: 27.7 / S: 15.9 D: 31.9 / S: 18.1 D: 36.9 / S:21.3 D: 40.8 / S: 23.5
Remark A: Product Arm / B: Sprue Arm
