Horizontal Type Mixer for Wedlon Automation Co., Ltd.

Horizontal Type Mixer
Product ID: MHT Series Inquiry

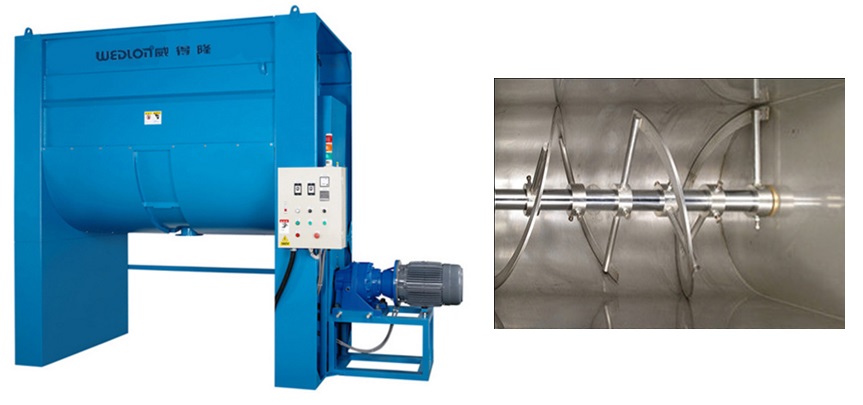

Horizontal Type Plastic Mixers - The Horizontal Type Plastic Mixers are major for blending raw material of plastic & rubber.

Click the above image for details.

Horizontal Type Mixing Machine is major for blending rubber, plastic virgin material, recycle material, colorant and masterbatch.

Horizontal Type Mixing Machine, it is can be applied for mixing industrial chemical material, metal powder and other food material.

Horizontal Type Mixing Machine, the blending barrel is U shape, screw blending blade mix a great quantity of raw materials slowly spirally.





  • It is major for blending rubber, plastic virgin material, recycle material, colorant and masterbatches.
  • It also can blend chemical material, metal powder and other food material.
  • The blending barrel is U shape and it attach spiral blade to mix large material slowly.
  • Entire closed-chamber rotating mixing and large feeding inlet at upper for proper exhausting.
  • Integrated polish inside, smooth surface (SUS304) no leftover.
  • Attach the timer and emergency stop switch.
  • It can attach heat transfer oil for material drying system.
  • Special designs made to meet customer’s need.
Model MHT-100 MHT-200 MHT-300 MHT-500 MHT-1000 MHT-1500 MHT-2000
Horsepower 3 HP 5 HP 7.5 HP 7.5~10 HP 10 HP 15 HP 20 HP
Capacity 100 Kg 200 Kg 300 Kg 500 Kg 1000 Kg 1500 Kg 2000 Kg
R.P.M. 30 rpm 30 rpm 30 rpm

30rpm

30 rpm

30 rpm 30 rpm
Machine Weight 260 Kg 320 Kg 450 Kg 780 Kg 920 Kg 1150 Kg 1380 Kg
Machine Size

1680x 600x 1,230 mm

2150x 675x 1,350 mm 2480x 825 x 1,600 mm 2500 x 1000 x 1,500 mm 2600x 1200x 1,500 mm 2800x 1400x 1,800 mm 3800 x 1650 x 2,200 mm
