Single H+L Robot Type Conveyor for Wedlon Automation Co., Ltd.

Single H+L Robot Type Conveyor
Product ID: RSHL Series Inquiry

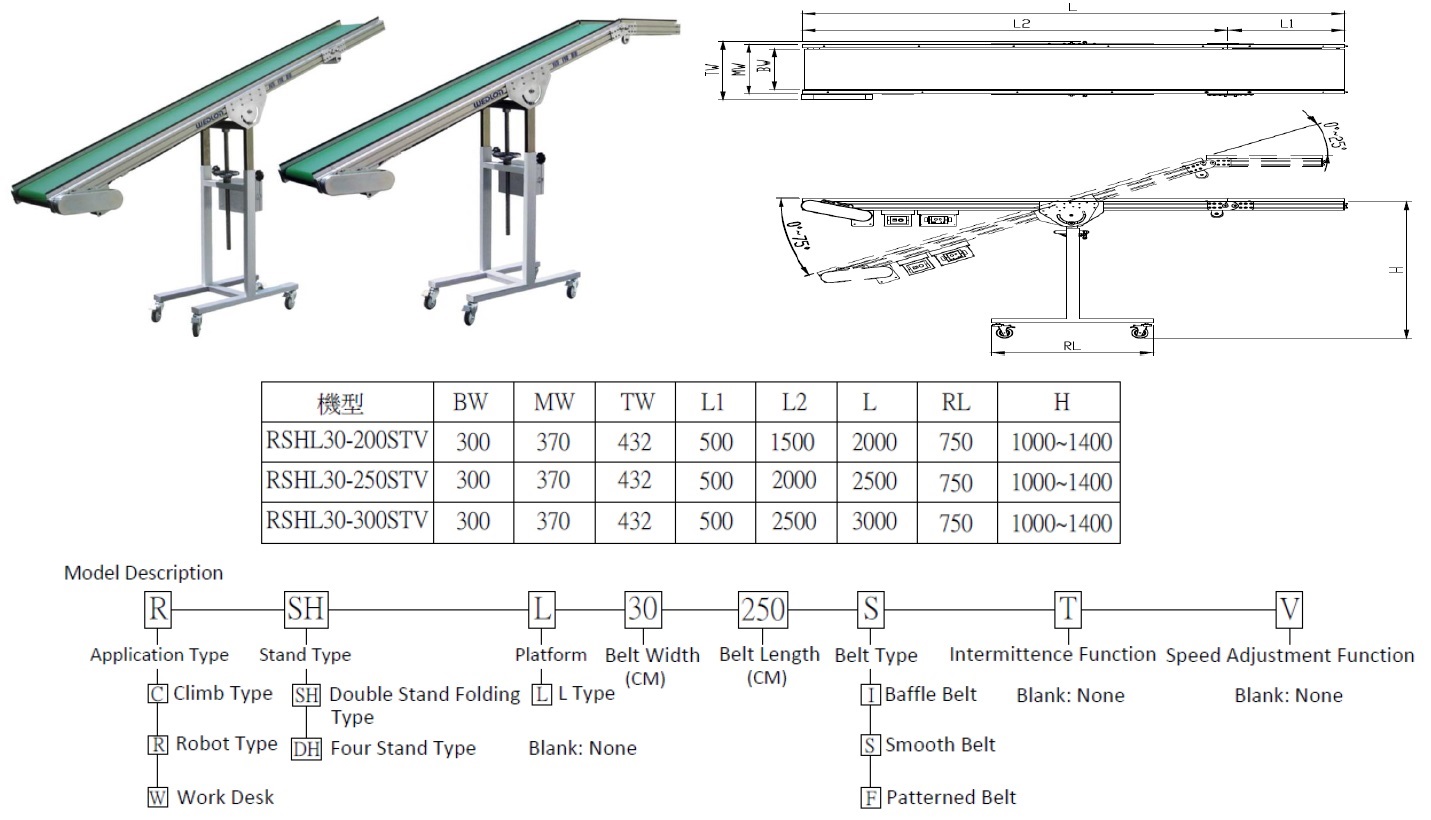

Click the above image for details.

The Conveyor Equipment-Robot Type conveyers are major for transporting the robot take out the runners, sprues, and fine products from the mold of plastic injection molding machine.

  • Any angles can be adjusted randomly.
  • Can be conveyed directly or intermittently.
  • The conveying speed can be dusted randomly.
  • Adopt imported, high quality belt which anti-electrostatic, heat-proof and oil-proof.
  • Specially designed sizes allow to be customized.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model RSHL 30-200/250/300SV RSHL 40-200/250/300SV RSHL 50-200/250/300SV
Belt Width 300 mm 400 mm 500 mm
Machine Length 2,000/2,500/3,000 mm 2,000/2,500/3,000 mm 2,000/2,500/3,000 mm
Machine Width 432 mm 532 mm 632 mm
Machine Height (Min) 1,000 mm 1,000 mm 1,000 mm
Machine Height (Max) 1,400 mm 1,400 mm 1,400 mm
Conveying Capacity 12 kg 12 kg 12 kg
Power 60 w 60 w 60 w
Conveyed Intermittent Option Function Option Function Option Function
Conveying Speed Adjustable 0~5 m/min Adjustable 0~5 m/min Adjustable 0~5 m/min
Belt Character Heat-proof, Oil-proof
Anti-electrostatic
Heat-proof, Oil-proof
Anti-electrostatic
Heat-proof, Oil-proof
Anti-electrostatic
