Double H+L Robot Type Conveyor for Wedlon Automation Co., Ltd.

Double H+L Robot Type Conveyor
Product ID: RDHL Series Inquiry

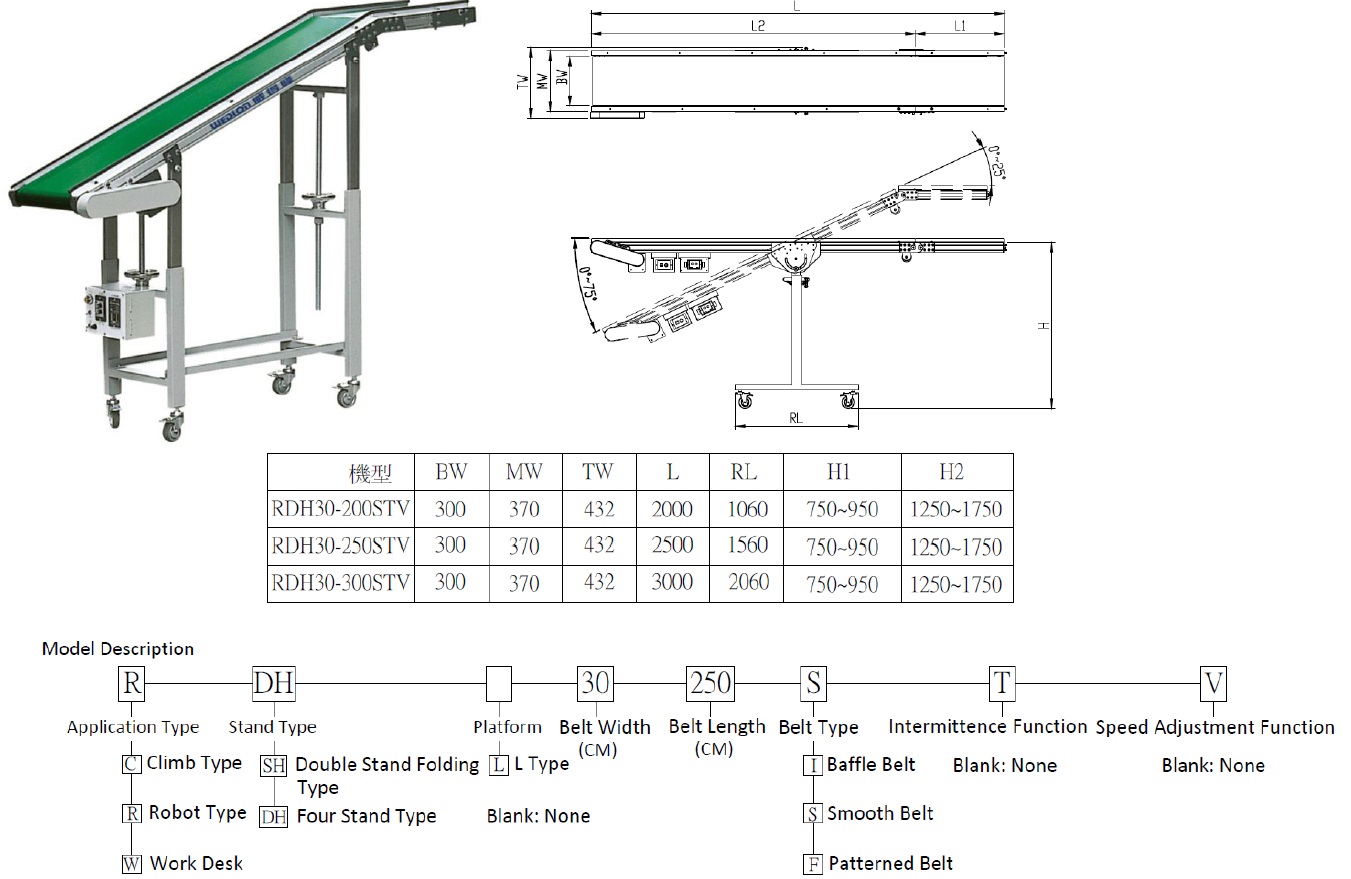

Click the above image for details.

The Conveyor Equipment-Robot Type are major for transporting the robot take out the runners, sprues, and fine products from the mold of plastic injection molding machine.

  • Any angles can be adjusted randomly.
  • Can be conveyed directly or intermittently.
  • The conveying speed can be dusted randomly.
  • Adopt imported, high quality belt which anti-electrostatic, heat-proof and oil-proof.
  • Specially designed sizes allow to be customized.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model RDHL30-200/250/300SV RDHL30-200/250/300SV RDHL30-200/250/300SV
Belt Width 300 mm 400 mm 500 mm
Machine Length 2,000/2,500/3,000 mm 2,000/2,500/3,000 mm 2,000/2,500/3,000 mm
Machine Width 432 mm 532 mm 632 mm
Conveying Capacity 12 kg 12 kg 12 kg
Power 60 w 60 w 60 w
Conveyed Intermittent Option Function Option Function Option Function
Conveying Speed Adjustable 0~5 m/min Adjustable 0~5 m/min Adjustable 0~5 m/min
Belt Character Heat-proof, Oil-proof
Heat-proof, Oil-proof
Heat-proof, Oil-proof
