Conveyor Equipment for Wedlon Automation Co., Ltd.

Conveyor Equipment
Product ID: RDH Series Inquiry

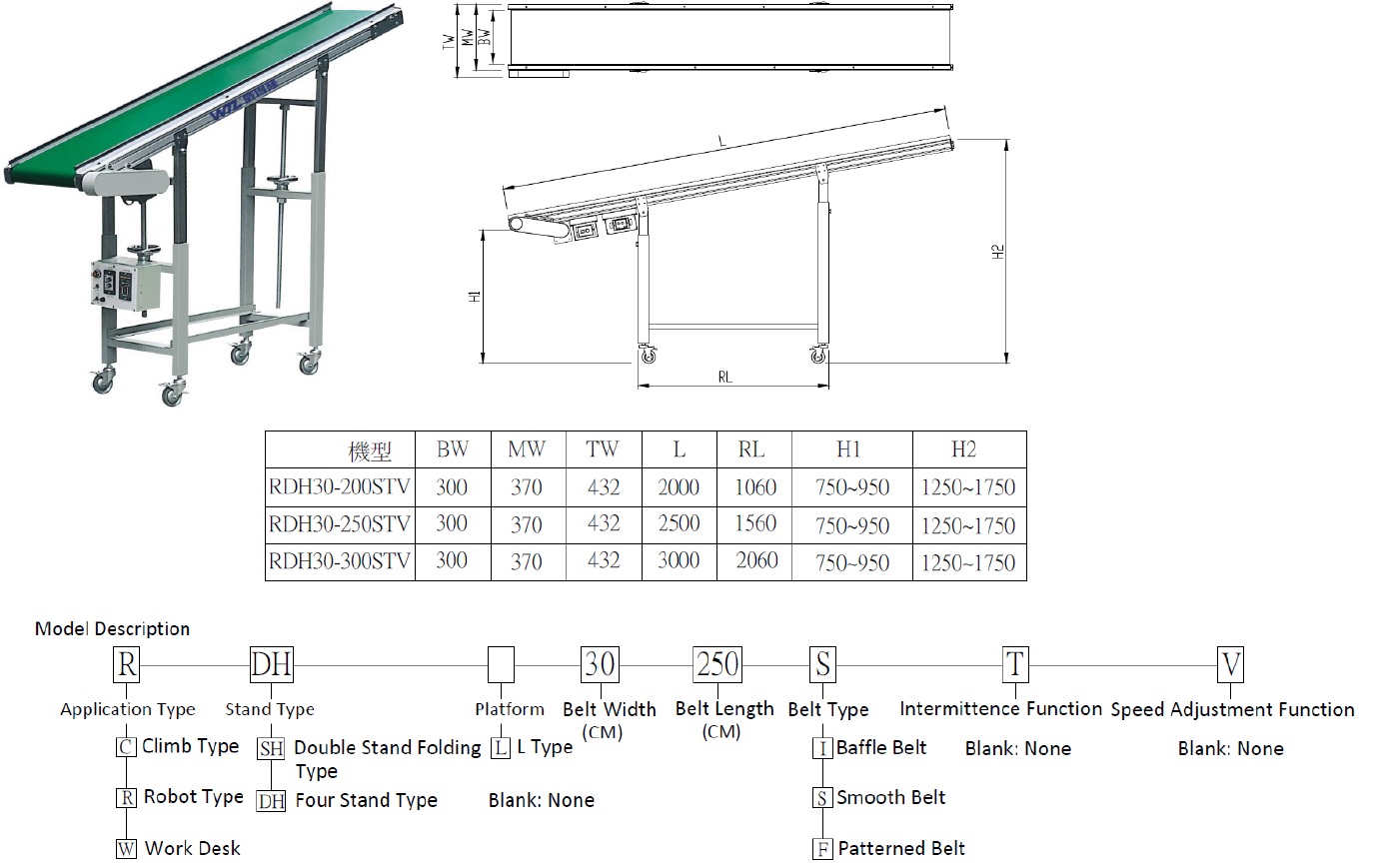

Click the above image for details.

The Conveyor Equipment-Robot Type conveyers are mojor for transporting the robot take out the runners, sprues, and fine products from the mold of plastic injection molding machine.

  • Any angles can be adjusted randomly.
  • Can be conveyed directly or intermittently.
  • The conveying speed can be dusted randomly.
  • Adopt imported, high quality belt which anti-electrostatic, heat-proof and oil-proof.
  • Specially designed sizes allow to be customized.
  • OEM/ODM Product
  • Branded Product
  • Buyer's Label Offered
Model RDH 30-200SV RDH 30-250SV RDH 30-300SV
Belt Width 300 mm 300 mm 300 mm
Machine Length 2,000 mm 2,500 mm 3,000 mm
Machine Width 412 mm 412 mm 412 mm
Machine Height (Min) 800 ~ 1,000 mm 800 ~ 1,000 mm 800 ~ 1,000 mm
Machine Height (Max) 1,200 ~ 1,800 mm 1,200 ~ 1,800 mm 1,200 ~ 1,800 mm
Conveying Capacity 12 kg 12 kg 12 kg
Power 60 w 60 w 60 w
Conveying Speed 0~5 m/min 0~5 m/min 0~5 m/min
Belt Character Heat-proof, Oil-proof
Anti-electrostatic
Heat-proof, Oil-proof
Anti-electrostatic
Heat-proof, Oil-proof
Anti-electrostatic
